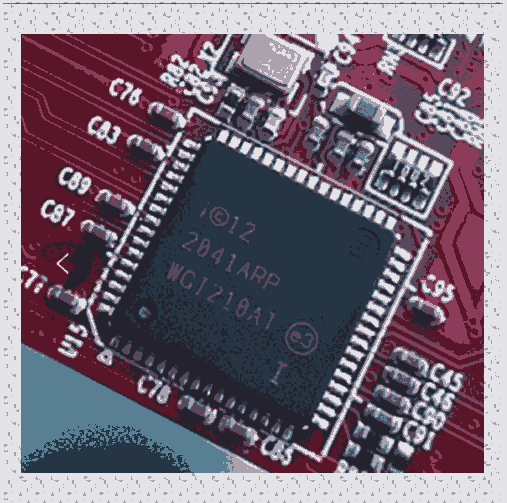

Intel I210AT innodisk网口转接卡M.2转出2个 千兆网口EGPL-G201

工控周边扩展卡

通讯类EGPL-G201

宜鼎弹性扩充的通讯卡模块系列，可针对工业系统提供稳定连接及带宽，并满足物联网下装置互连的需求。

产品特色

1. 1. Dual isolated GbE LAN ports
2. 2. Complies with EN61000-4-5 1kV Surge protection
3. 3. Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2kV HiPOT protection
4. 4. Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
5. 5. Flexible daughter board with cable to fit into different system
6. 6. Optional terminal mounting hole or bracket for daughter board
7. 7. Optional Industrial Temperature (-40°C to +85°C) support
8. 8. 30μ ” golden finger, 3 years warranty
9. 9. Industrial design, manufactured in Innodisk Taiwan?

10. 规格：

    Module Name	EGPL-G201
    Module Type	M.2 to Dual GbE LAN Module
    Function	LAN
    Form Factor	M.2 2280 B-M
    Input I/F	PCI Express 2.1 x 1
    Output I/F	Dual GbE LAN
    Output connector	RJ45 x 2
    Power Consumption	1.485W (3.3V x 450mA)
    Dimensions (W x L x H/mm)	22 x 80 x 9.3
    Temperature	Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
    Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
    Notes	Please download driver from MyInnodisk website. Windows: XP(32bit), 7(32/64bit), 8/8.1(32/64 bit), 10(32/64bit) Linux: kernel 2.4 series, 2.6.x and 3.x version.

    产品料号：

    P/N	Description
    EGPL-G201-C1	Terminal mounting hole, Standard Temp.
    EGPL-G201-W1	Terminal mounting hole , Wide Temp.
    EGPL-G201-C2	Bracket, Standard Temp.
    EGPL-G201-W2	Bracket, Wide Temp.
