工业级CF存储卡
CF 闪存卡为使用于PATA接口的小型尺寸装置，适用于各种工业以及任何恶劣的环境。
产品特色
1. iSMART磁盘运行状况监视
2. 智能错误恢复系统
3. 出色的数据传输速度
4. 写保护安全性
5. 增强的电源循环管理
Overview:
The Innodisk Industrial CompactFlash? 9000 Memory Card (iCF 9000) products provide high capacity solid-state flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.
Innodisk Industrial CompactFlash?9000存储卡（iCF 9000）产品提供高容量固态闪存，在电气上符合与IDE磁盘驱动器电气兼容的真实IDE模式。原始CF形状系数卡可用于任何具有CF插槽的系统。
?
Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash? 9000 Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial work place. The Industrial CompactFlash? features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash? 9000 (iCF 9000) support advanced PIO (0-6), Multiword DMA (0-4), Ultra DMA (0-7) transfer mode, multi-sector transfers, and LBA addressing.
规格：
|
Model Name |
iCF 9000 |
|
Interface |
PATA |
|
Flash Type |
SLC |
|
Capacity |
1GB~64GB |
|
Sequential R/W (MB/sec, max.) |
110/100 |
|
Max. Power Consumption |
1.53W(5V x 306mA) |
|
Max. Channels |
4 |
|
H/W Write Protect |
Optional |
|
ATA Security |
Y |
|
S.M.A.R.T. |
Y |
|

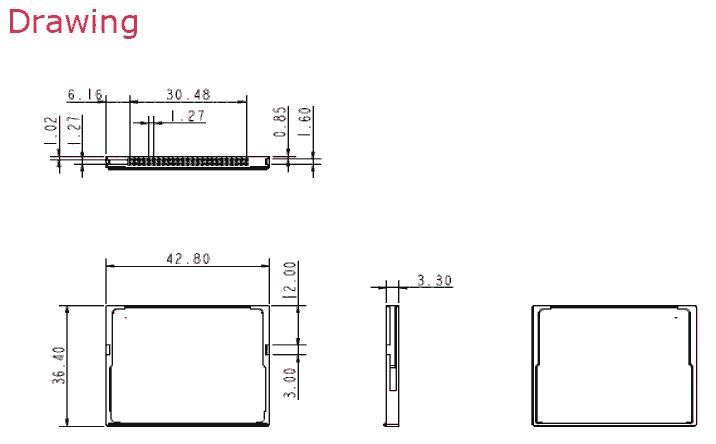

Dimension (WxLxH/mm) |
42.8 x 36.4 x 3.3 |
|
Vibration |
20G@7~2000Hz |
|
Shock |
1500G@0.5ms |
|
MTBF |
>3 million hours |
|
Storage Temperature |
-55°C ~ +95°C |
|
Operation Temperature |
Standard Grade: 0°C ~ +70°C; |
产品料号：
|
Operation Temp. |
1GB |
2GB |
4GB |
8GB |
16GB |
32GB |
64GB |
|
Standard Grade |
DC1M-01GD71AC2DB |
DC1M-02GD71AC2QB |
DC1M-04GD71AC2QB |
DC1M-08GD71AC2QB |
DC1M-16GD71AC1QB |
DC1M-32GD71AC1QB |
DC1M-64GD71AC1QB |
|
Industrial Grade |
DC1M-01GD71AW2DB |
DC1M-02GD71AW2QB |
DC1M-04GD71AW2QB |
DC1M-08GD71AW2QB |
DC1M-16GD71AW1QB |
DC1M-32GD71AW1QB |
DC1M-64GD71AW1QB |
