innodisk固态硬盘 3ME4 64G DEMSR-64GM41BC1DC?

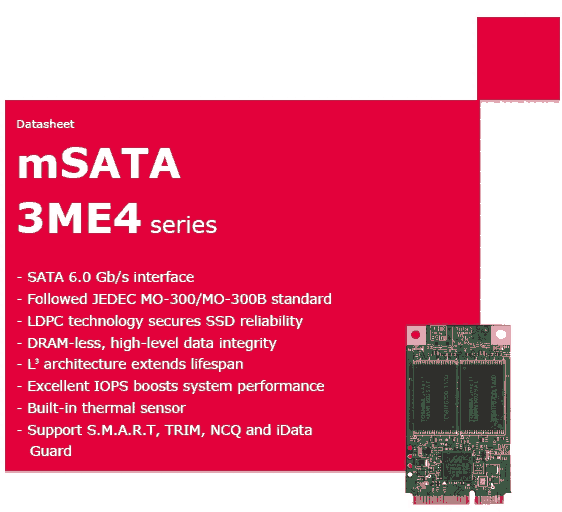

mSATA 3ME4

产品特色

·???????? SATA 6.0 Gb/s interface

·???????? Followed JEDEC MO-300/MO-300B standard

·???????? LDPC technology secures SSD reliability

·???????? DRAM-less, high-level data integrity

·???????? L3 architecture extends lifespan

·???????? Excellent IOPS boosts system performance

·???????? Built-in thermal sensor

·???????? Support S.M.A.R.T, TRIM, NCQ and iData Guard

Overview:

Innodisk mSATA 3ME4 is SATA III 6.0 Gb/s flash based disk, which adopts latest Marvell NAND controller with Innodisk’s exclusive L3 FW architecture. The upgraded L3 FW architecture, combining Innodik signature 4K mapping algorithm L2 FW architecture with powerful LDPC technology, makes 3ME4 series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor, and iData Guard ensure data integrity and reliability of mSATA 3ME4 for industrial applications.

概述：

Innodisk mSATA 3ME4是基于SATA III 6.0 Gb/s闪存的磁盘，采用最新的Marvell NAND控制器，具有Innodisk独有的L3FW体系结构。升级后的L3FW体系结构将Innodik签名4K映射算法L2FW体系结构与强大的LDPC技术相结合，通过减少坏块数的发生，使3ME4系列具有卓越的高IOPS、更好的数据完整性和更长的使用寿命。内置热传感器和iData Guard确保mSATA 3ME4在工业应用中的数据完整性和可靠性。

产品料号：

Standard Grade(0°C ~ +70°C)

DEMSR-08GM41BC1SC??

DEMSR-16GM41BC1DC

DEMSR-16GM41BC1SC??

DEMSR-32GM41BC1DC?

DEMSR-64GM41BC1DC?

DEMSR-A28M41BC1DC?

DEMSR-B56M41BC1DC

Industrial Grade(-40°C ~ +85°C)?????

DEMSR-08GM41BW1SC

DEMSR-16GM41BW1DC

DEMSR-16GM41BW1SC

DEMSR-32GM41BW1DC

DEMSR-64GM41BW1DC

DEMSR-A28M41BW1DC

DEMSR-B56M41BW1DC
